Product Description

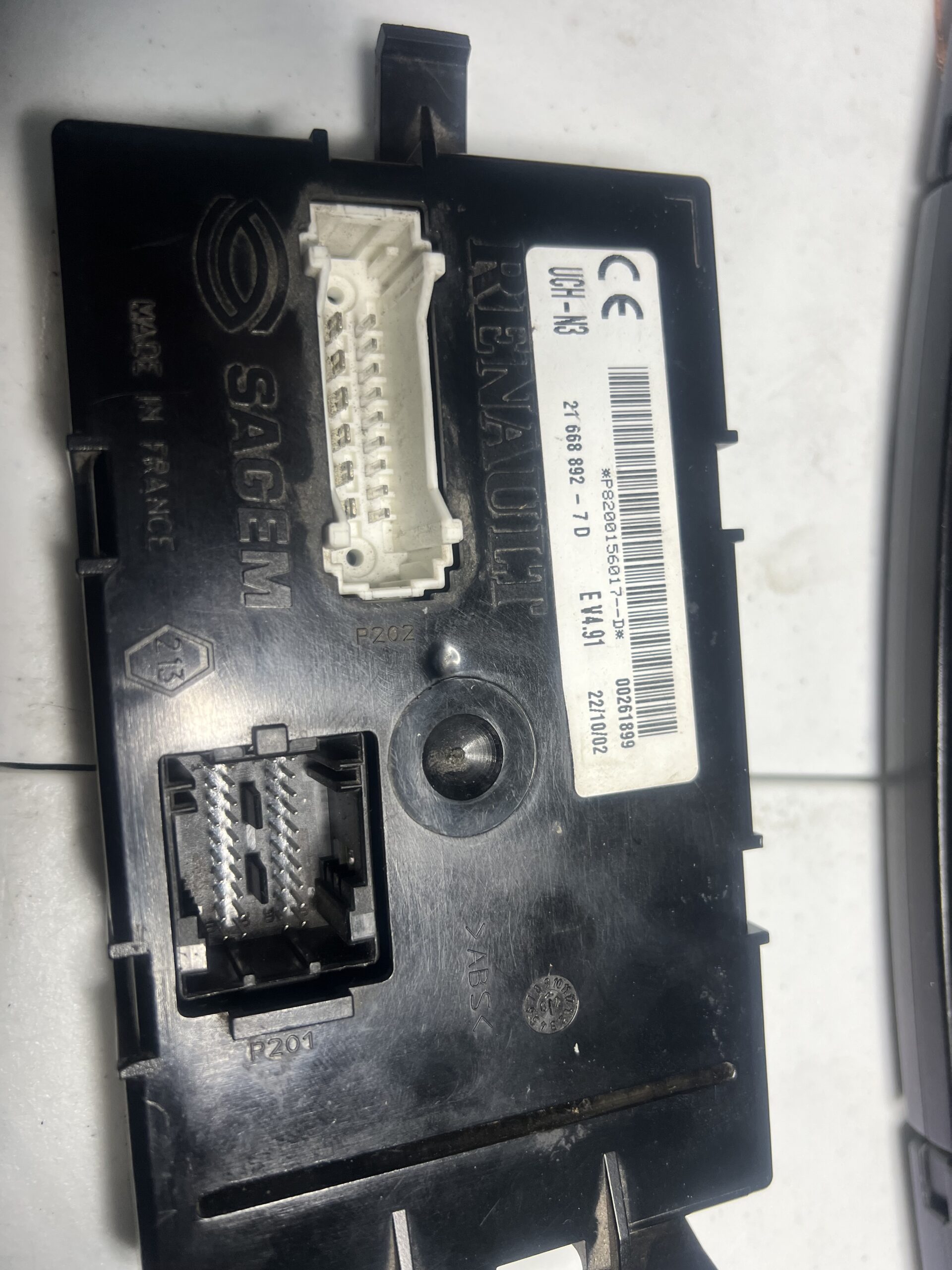

The Renault Master (especially models from 2010 onward, also called Renault Master III) is known to experience Body Control Module (BCM) faults, which can affect a wide range of vehicle systems. The BCM, also called the UPC (Unité de Protection et de Commutation) or UCH (Unité Centrale Habitacle) in Renault terminology, controls many electrical and comfort systems, and faults can lead to odd or serious behavior.

⚠️ Common Renault Master BCM (UCH/UPC) Faults

1. 🔑 Central Locking / Key Recognition Issues

Symptoms: Key fob doesn’t unlock/lock, van won’t start, immobiliser warning light.
Cause: Corruption or failure in BCM, water ingress, faulty key.
Fix: BCM reprogramming or replacement; key re-coding.

2. 💡 Lighting Faults

Symptoms: Headlights/fog lights not working, indicators flashing incorrectly, lights flicker or stay on.
Cause: BCM internal relay failure, bad solder joints, wiring harness issues.
Fix: Repair or replace BCM; check earth points and fuses.

3. 🪟 Electric Window / Mirror Malfunctions

Symptoms: Windows/mirrors stop responding intermittently or permanently.
Cause: BCM logic failure or communication issues.
Fix: BCM software reset or replacement; fuse/relay inspection.

4. 🔌 CAN Bus Communication Errors

Symptoms: Multiple system warnings (ABS, ESP, airbag), loss of communication with modules.
Codes: UCH or UPC communication fault codes (Uxxxx).
Cause: BCM failure, CAN wiring faults, moisture or corrosion.
Fix: CAN line testing, BCM replacement, moisture proofing.

5. 🌧️ Wiper / Washer Malfunctions

Symptoms: Wipers won’t work or operate on their own.
Cause: Relay or logic failure in BCM.
Fix: BCM testing and repair; some BCMs can have faulty integrated relays.

6. 🧠 Battery Drain / Electrical Gremlins

Symptoms: Flat battery after a few days, relays clicking when vehicle off.
Cause: BCM staying awake (not entering sleep mode), parasitic drain.
Fix: BCM software update or replacement; parasitic draw test.

🔎 Diagnosis Tips

Tool	Use
Renault CLIP (OEM)	Best tool for BCM diagnostics, coding, and reprogramming.
Delphi/Autel Tools	Can read many fault codes but limited on BCM programming.
Multimeter & Scope	For checking power, ground, and CAN signals.

🧰 Repair or Replace?

Option	Notes
Repair	Some BCMs can be refurbished (replace relays, fix dry joints).
Used BCM	Possible, but must be virginized or matched with correct VIN and key.
New BCM	Requires programming and possibly immobilizer/key re-sync.

🛡️ Common Causes of BCM Failure in the Renault Master:

Water ingress from windscreen or bulkhead (especially on Master III).
Vibration damage or poor connector seating.
Low voltage or jump-starting damaging control logic.
Aging internal relays and solder joints.

If you have a specific year and fault code or symptoms, I can give you a more exact breakdown or troubleshooting steps.
