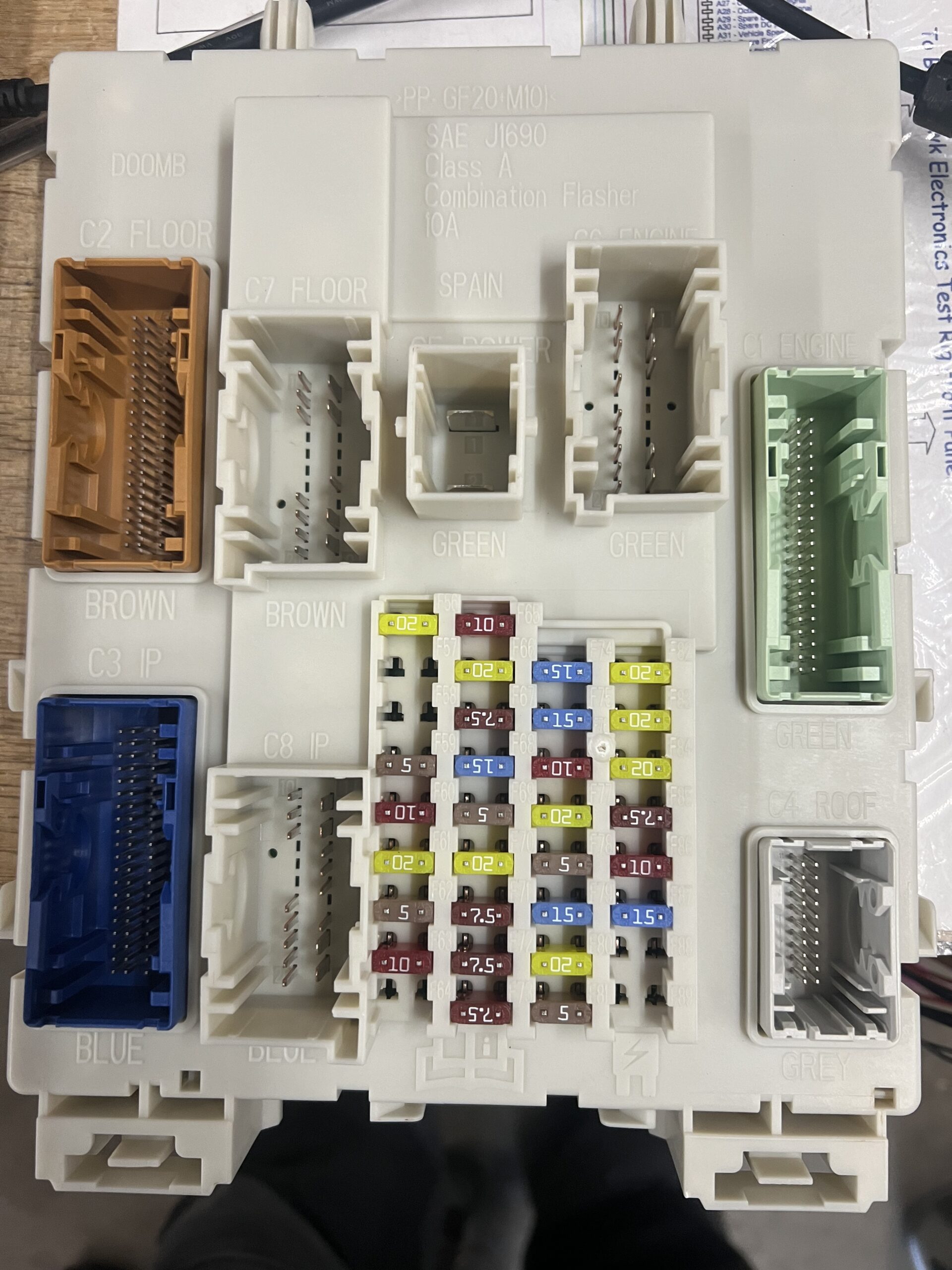

Ford Body Control Unit

🔧 Common Ford Body Control Unit (BCU/BCM) Faults

1. Central Locking System Failure

• Symptoms: Doors won’t lock/unlock via remote or switch.

• Causes: Internal BCM relay failure, corroded wiring, or software glitches.

2. Interior and Exterior Lighting Malfunctions

• Symptoms: Headlights or interior lights staying on, flickering, or not working.

• Causes: Faulty relays or circuitry inside the BCU, poor ground connections.

3. Electric Window Issues

• Symptoms: Windows won’t operate or behave intermittently.

• Causes: Faulty signals from the BCU, often due to water ingress or wiring issues.

4. Battery Drain

• Symptoms: Battery goes flat overnight or after sitting for a short time.

• Causes: The BCU not entering sleep mode properly, often caused by a software fault or peripheral device constantly waking the BCU.

5. Wipers or Washer System Malfunctions

• Symptoms: Wipers don’t operate correctly or at all.

• Causes: The BCU not properly sending signals to the wiper control relays or motors.

6. Warning Lights or Dashboard Errors

• Symptoms: Random warning lights (ABS, Airbag, etc.) or error messages.

• Causes: Faulty CAN bus communication due to a failing BCU or corroded connectors.

7. Remote Key/Fob Not Recognized

• Symptoms: Car won’t start or unlock with remote.

• Causes: BCU failing to recognize the transponder or antenna signal issues.

🚨 Common Causes of BCU Failure

• Water Ingress: Moisture getting into the BCM housing, especially in models where the BCU is mounted in vulnerable locations (e.g., footwells).

• Electrical Overload: Voltage spikes from jump-starts or failing alternators.

• Wiring Harness Issues: Corrosion or damage to wiring looms, especially near the BCU.

• Software Glitches: Outdated or corrupted firmware.

🧰 Diagnostic & Repair Tips

• Scan Tools: Always use a proper Ford-compatible OBD2 scanner to retrieve BCM-specific codes.

• Check Grounds: Poor grounding is a common cause of BCM-related issues.

• Visual Inspection: Look for corrosion, moisture, or burn marks on the BCM and connectors.

• Software Updates: Sometimes, a reflash or update using Ford IDS or FDRS can resolve glitches.

• Replacement: If faulty, replacement often requires reprogramming or pairing with the vehicle’s systems (e.g., PATS for key recognition).
